Stainless steel pneumatic conveying powder particle three-way ball valve

Name: Stainless steel pneumatic conveying powder particle threeway ball valve
Brand: TECLION
Price: 1 USD

Quality Stainless steel pneumatic conveying powder particle three-way ball valve for sale

Brand Name : TECLION

Model Number : DBK100

Certification : CE

Place of Origin : China Anhui

MOQ : 1

Price : Get the Best Price

Payment Terms : T/T

Supply Ability : Usually every ten sets for 40 days

Delivery Time : 30 working days

Packaging Details : Professional export fumigation free wooden crate

Product model : DBK100

Valve material : 304SS

Valve core : Ball type

Pressure range : under 6 barg

Drive form : pneumatic

Flange : PN10,PN20

Color : Stainless steel color

Seal form : Air seal

Contact Now

Stainless steel pneumatic conveying powder particle three-way ball valve

Product Description:

The three-way directional ball valve can be used for high-pressure dense phase transportation, and the valve material can be selected from stainless steel or carbon steel. The conveyed materials are powder and granular solid materials. The valve channel is smooth and free of undulations. According to customer operating requirements, special treatments such as polishing and ceramic lining can be carried out inside the valve channel. Equipped with a flow direction indicator, customers can clearly see the flow direction display.

Product Features:

1) Suitable for a pressure difference of 6 barg

2) Used for dense phase transportation

3) Smooth channel with no dead corners

4) Used in explosion-proof areas

5) Three port seal

Product Parameters:

No	Item	Note
1	Diverter valve	Ball type diverter valve
2	Suitable pressure	6.0 barg
3	Height	468
4	Temperature	From minus 20 degrees to 120 degrees
5	Seal	Optional hard seal structure

Product Pictures:

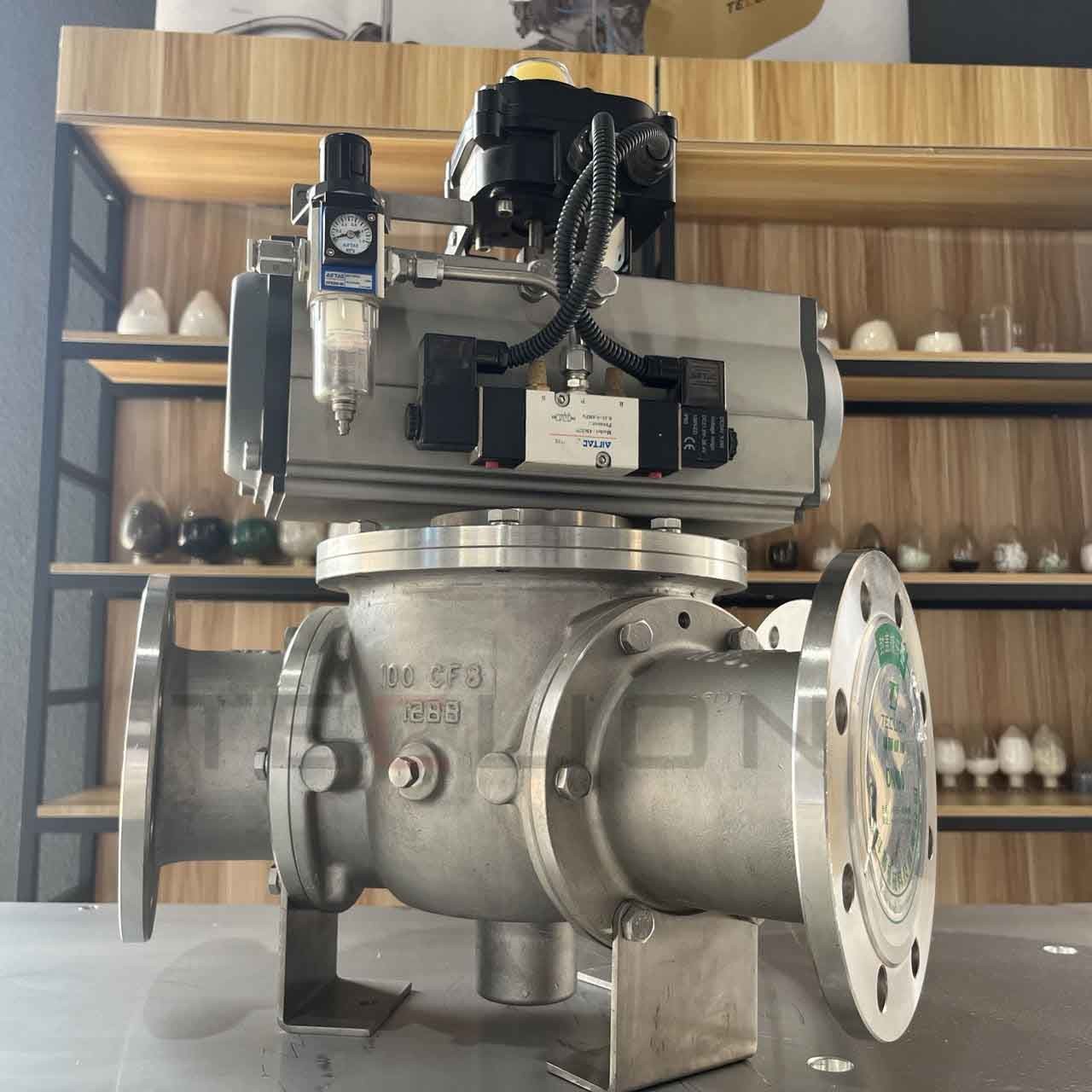

Stainless steel pneumatic conveying powder particle three-way ball valve Images
